PH100

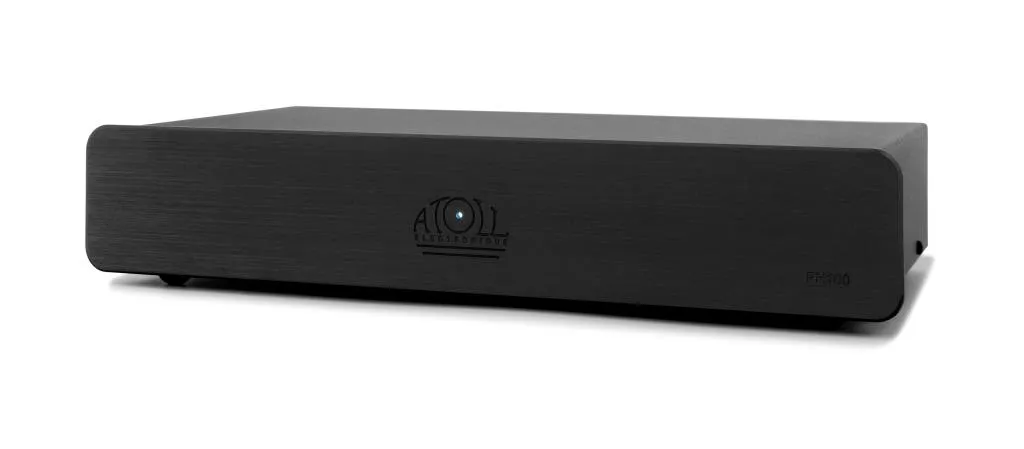

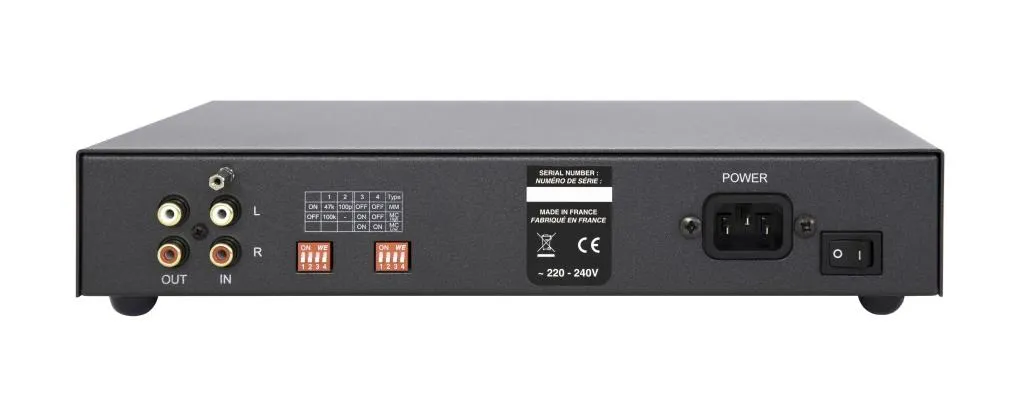

The PH100 phono preamp is an external module with a specific power supply consisting of 2 high-end transformers (one per channel) with very low noise and 4 voltage regulators. The assembly is shielded by a metal box to preserve any interference on the audio stages. It is entirely made of discrete components and does not include any link capacitors. The configurations (MM/MC, input impedance) are directly accessible from the rear of the chassis.4 mm brushed aluminium front. MORE ABOUT A PRODUCT: 2 very low noise linear transformers 3,2 VA each, 4 regulated power supplies, Total capacitance: 11,280 µF, Input impedance: 47 k or 100 k (*), Input capacitance: 100 pF or nothing, MM gain: 40 dB, High-level MC gain: 47 dB, Low level MC gain: 60 dB, Signal/Noise Ratio at 1 kHz: 80 dB, Crosstalk at 1 kHz: < -85 dB, Frequency response (20 Hz -20 kHz): <0.1 dB, THD: 0.05%
